該攪拌器是我公司研制成功的國家專利產品，專利號為ZL200720101757.5。此類型采用直聯形式，解決了安裝不當造成的噪聲、振動問題，體積減小、便于維修、安裝簡易、方便使用。輸入軸最大轉速為1500轉/分，當環境溫度低于0°時，必須加溫至0°以上或更換低溫潤滑油。在鉆井液循環系統中使泥漿混合均勻、性能穩定，避免了固相顆粒沉積，配合除砂器、除泥器、離心機使用，減少泥漿中有害的固相顆粒，滿足鉆井的需求。用于石油礦場鉆井泥漿凈化系統中，也可以用于其他液體攪拌系統。

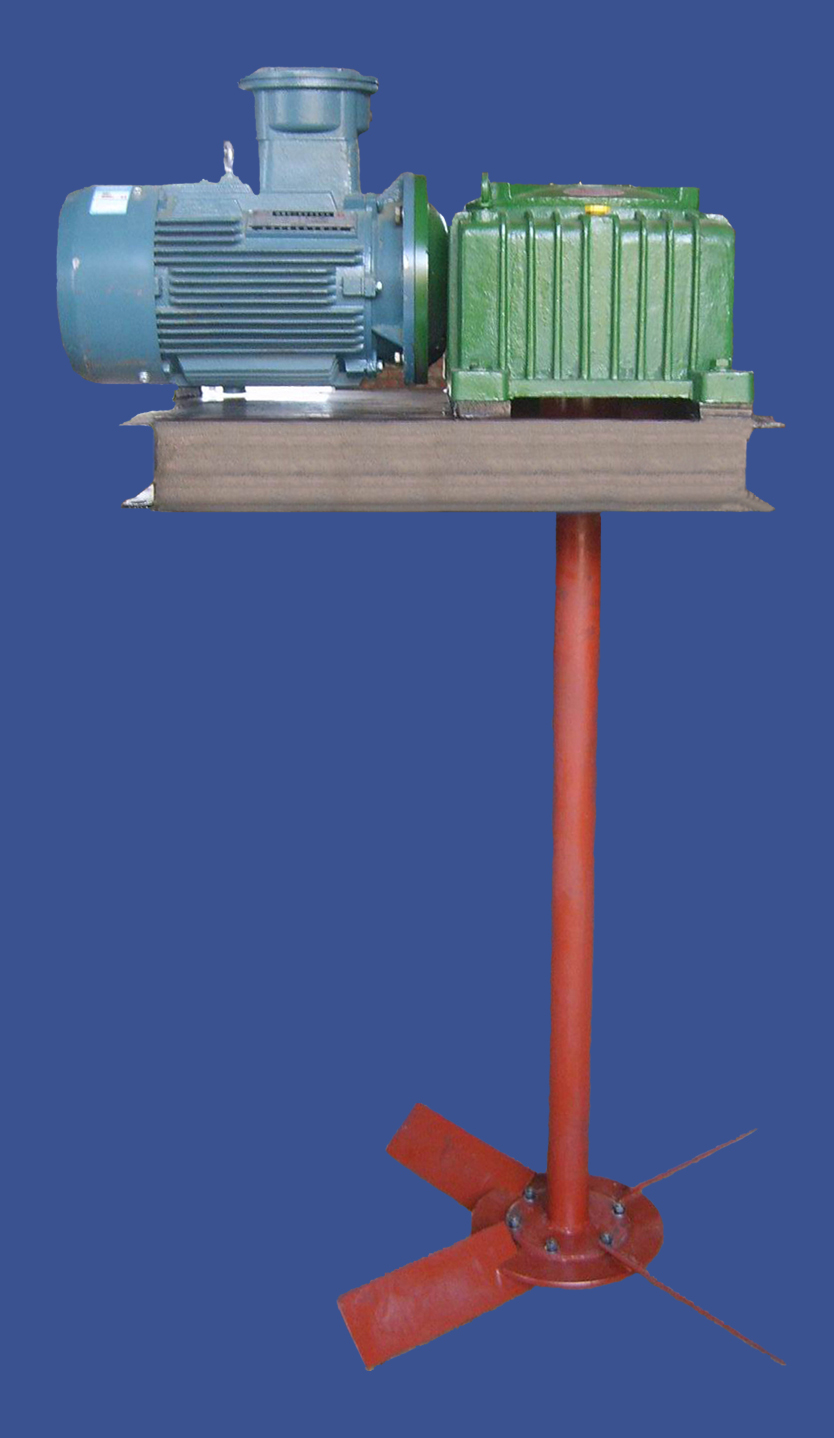

The agitator is my company successfully developed a national patent products, patent No. ZL200720101757.5. This type uses Direct form, solve the noise caused by improper installation, vibration problems, reduced size, easy maintenance, easy to install, easy to use. Maximum input shaft speed of 1500 rev / min, when the ambient temperature is below 0 °, must be heated to above 0 ° or replace the low-temperature oil. In the drilling fluid circulation system manipulation mud mixing, stable performance, to avoid the deposition of solid particles, with Desander, mud, centrifuges used to reduce the harmful mud solid particles, in addition to meet the needs of drilling. For oil field drilling mud purification system it can also be used for other liquid mixing systems.

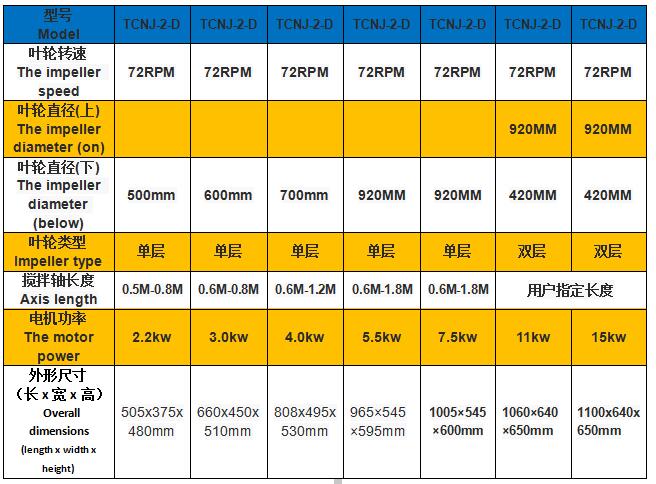

技術參數technical parameter
